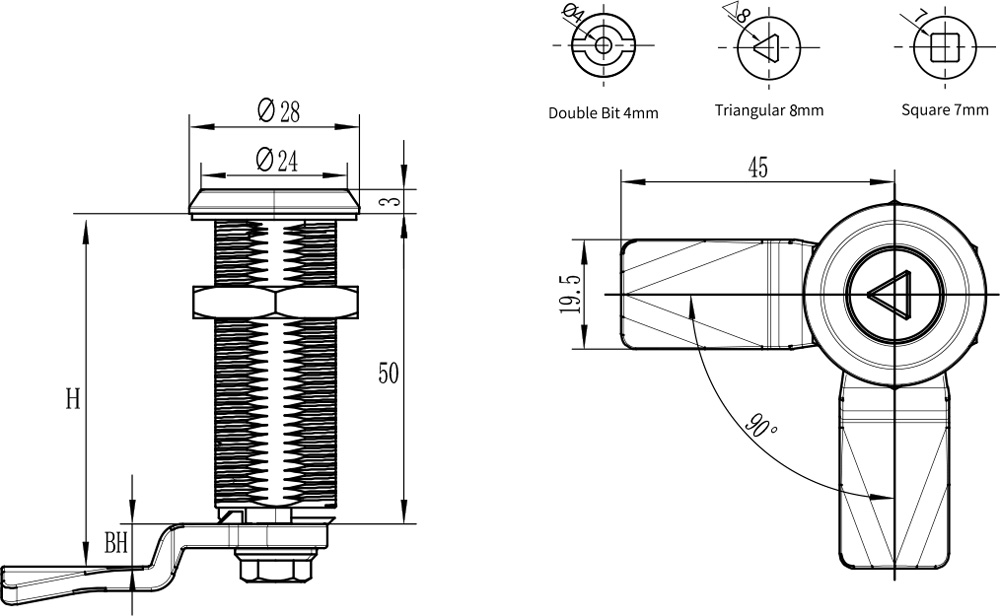

Quarter Turn Latch D1-1405(MS705-50)
1. Material and surface treatment
Stainless steel 316 or 304
2. Performance parameters:
Protection level: IP65
3. Installation instructions:
Fixing screw torque 8N.M
Fixing nut torque 17N.M
D1-1404 Applicable door thickness: 1-30mm
D1-1405 Applicable door thickness: 1-40mm
| Lock type | Lock code | Lock body GH=40mm | Lock body GH=50mm |
| Double bit 4mm | 014 | D1-1404-014 | D1-1405-014 |
| Triangle 8mm | 038 | D1-1404-038 | D1-1405-038 |
| Square 7mm | 047 | D1-1404-047 | D1-1405-047 |
