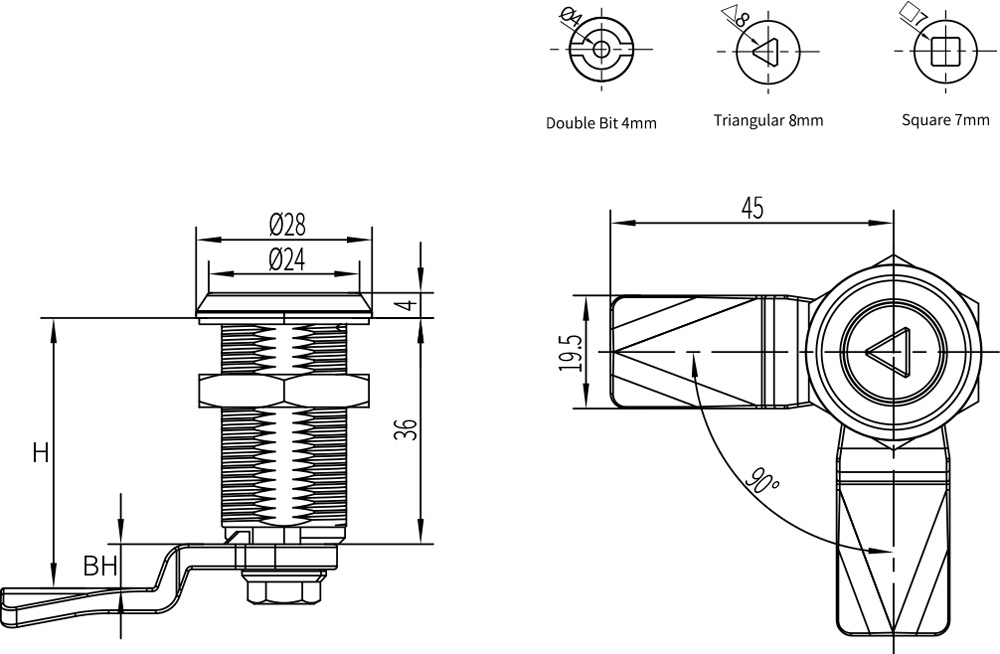

Quarter Turn Latch D1-1403(MS705-36)
1. Material and surface treatment:
Stainless steel 316 or 304
2. Performance parameters:
Protection level: IP65
3. Installation instructions:
Fixing screw torque 8N.M
Fixing nut torque 17N.M
D1-1402 Applicable door thickness: 1-20mm
D1-1403 Applicable door thickness: 1-26mm
| Lock type | Lock code | Lock body GH=30mm | Lock body GH=36mm |
| Double bit 4mm | 014 | D1-1402-014 | D1-1403-014 |
| Triangle 8mm | 038 | D1-1402-038 | D1-1403-038 |
| Square 7mm | 047 | D1-1402-047 | D1-1403-047 |
