Quarter Turn Latch B-1520-015-10
Quarter Turn Latch B-1520-015-10

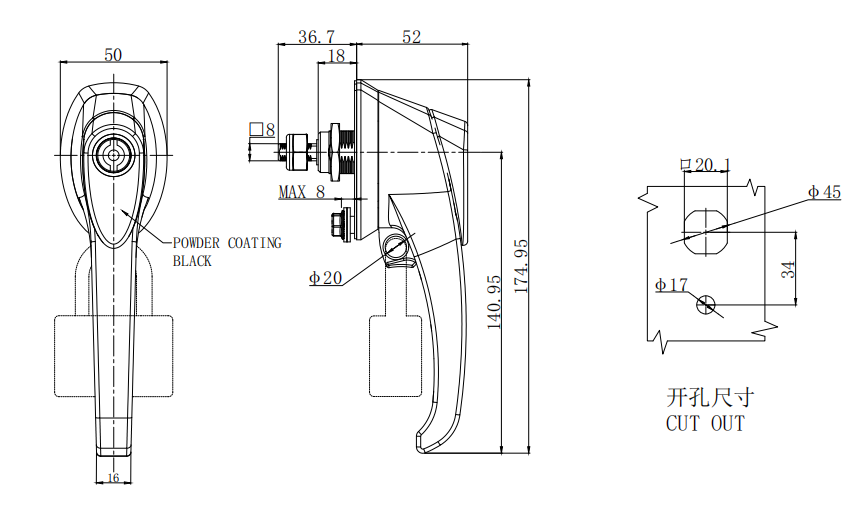

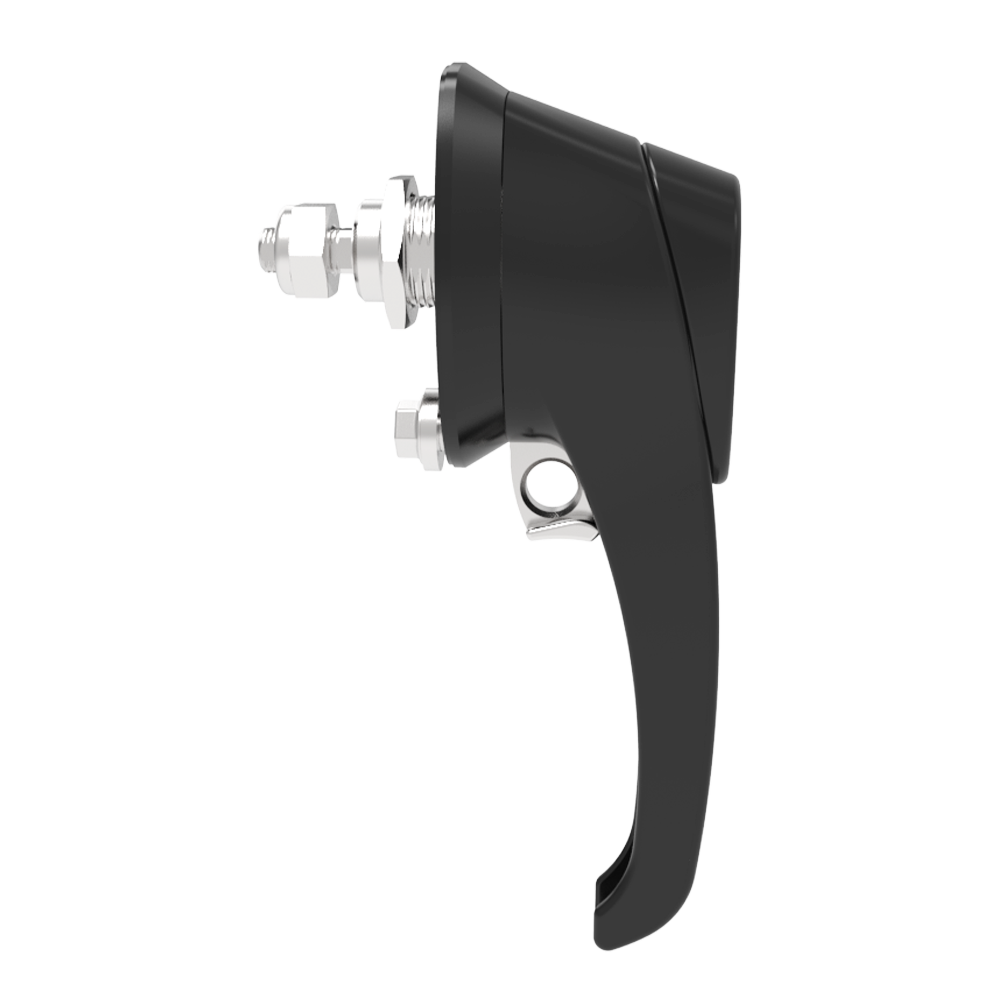

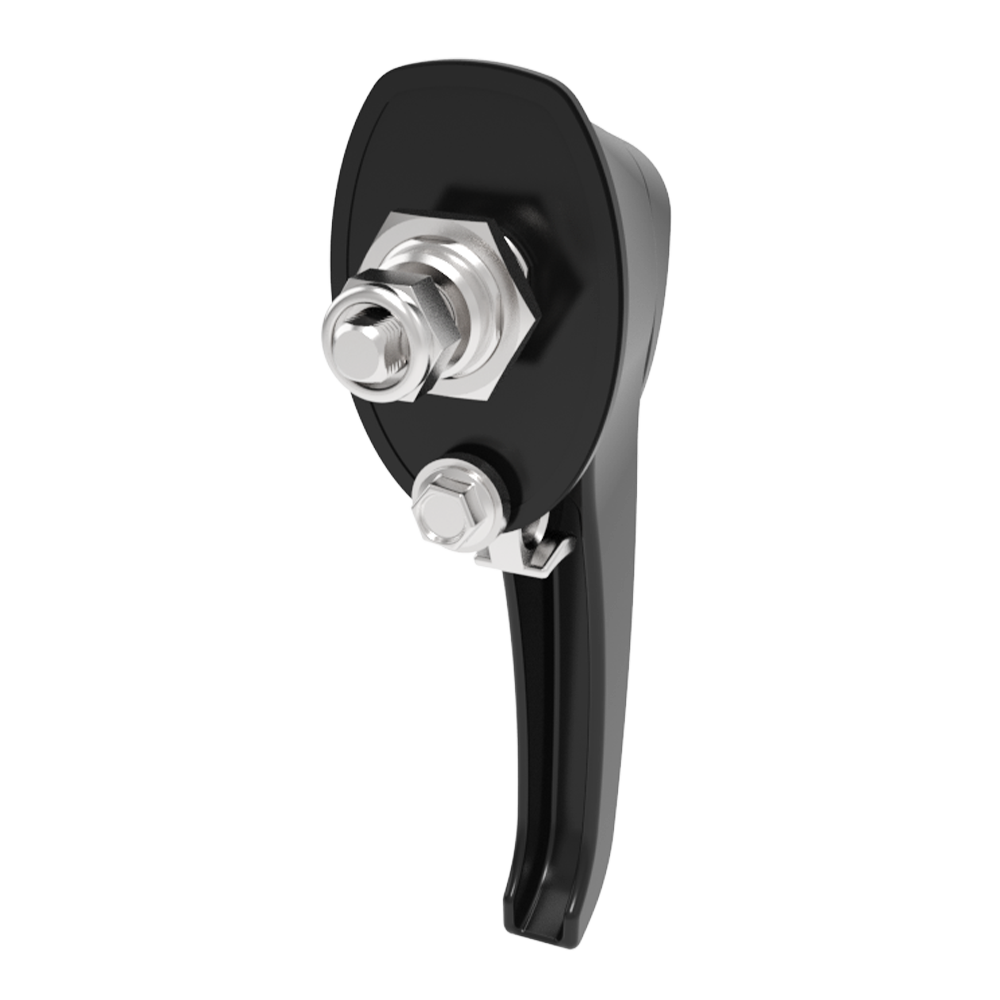

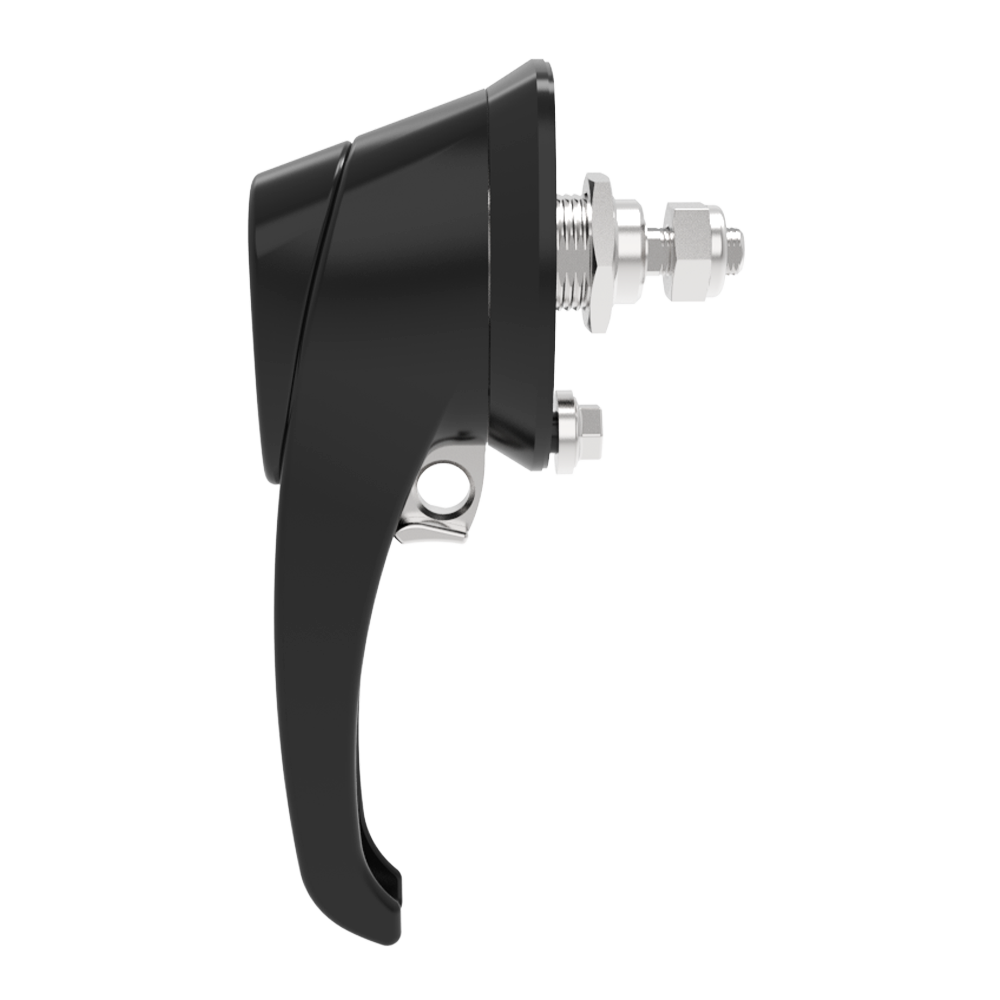

Quarter CAM latch, L-handle with padlock, 5mm wing, with CAM, zinc alloy, powder coating, black,B-1520-015-10

1.Material and surface treatment:
Lock body, handler :Zamak DIN-EN
1774-ZnAl4Cu1 , SUS304 or Electrochrome
plating
Steel bolt: iron galvanized
Sealing ring: EPDM foam.
2. Performance parameters:
Protection class: IP65
3. Remarks:
Optional dedicated key
Default CH751 key
