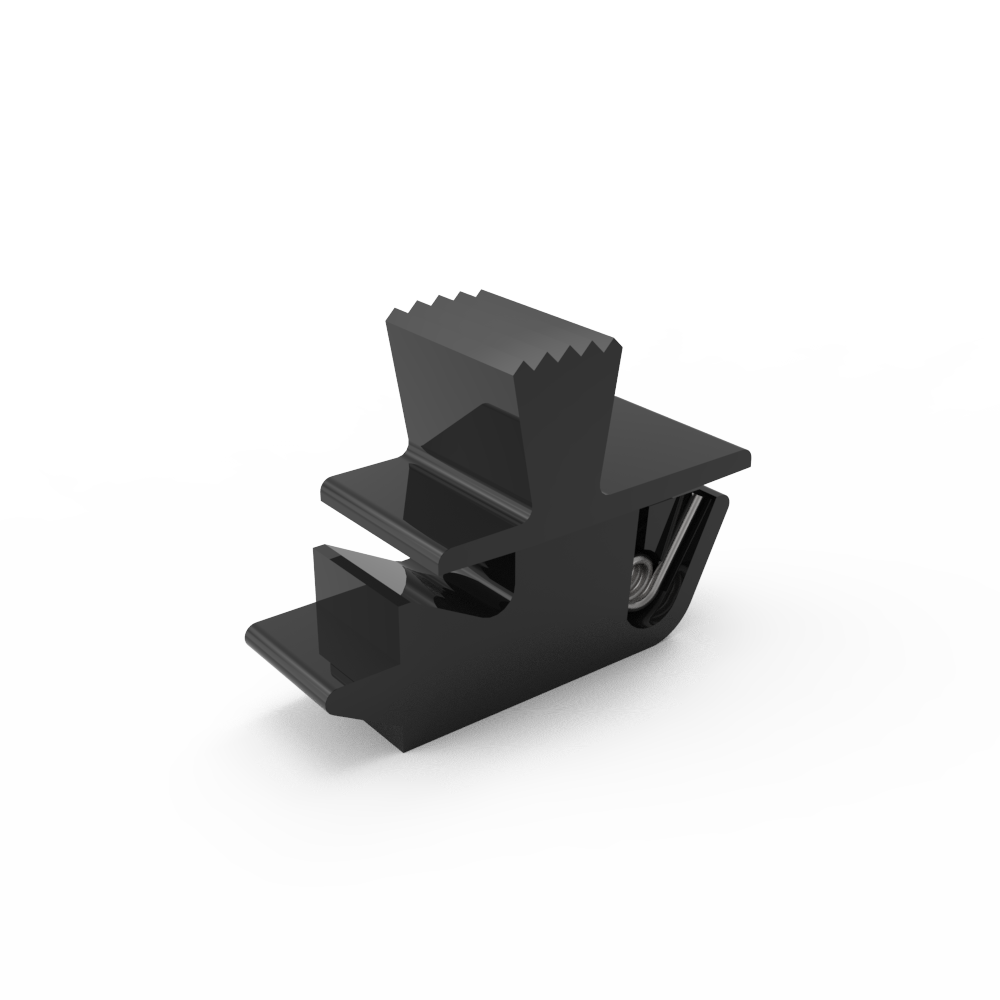

Push-to-Close Slide LatchDK727-1
Push-to-Close Slide LatchDK727-1

Push-to-Close Slide Latch, Snap-in, Small Size, 0.76mm (.030 in) Panel Thickness, 2.54mm (.100 in) Total Grip, ABS, BlackDK727-1

1.Material and surface

treatment:Latch: PC/ABS,

blackSpring: Stainless steel
2.Performance Details

Max.workingload:

Medium:90N(20lbf)

Large:130N(29lbf)

Operating temperature range:-40C(-40F)to60C(140F)

Flammability rating:UL94-VO

Quarter Turn Latch B-1312-A1
Quarter-turn cam latch, L-handle, cam, padlock, stainless steel, brushed and polished, bright,B-1312-A1
Quarter Turn Latch B-1312-10
Quarter Turn Cam Latch, L-Handle, Cam, Padlock, Black Powder Coat,B-1312-10
Quarter Turn Latch B-1312-20
Quarter CAM latch, L handle, with CAM, Seal, zinc alloy, Chrome plating, bright,B-1312-20
Quarter Turn Latch MS325-10
Quarter Turn Cam Latch, L-Handle, Cam, with Hanging, Zinc Alloy, Powder Coated, Black,MS325-10
Quarter Turn Latch MS325-20
Quarter-turn cam latch, L-handle, cam with hanging, zinc alloy, chrome plating, bright,MS325-20
Quarter Turn Latch B-1520-038-10
Quarter CAM latch, L-handle with padlock, Triangle 8,with CAM, zinc alloy, powder coating, black,B-1520-038-10
Quarter Turn Latch B-1520-015-A1
Quarter CAM latch, L-handle with padlock, 5mm wing ,with CAM, stainless steel, polished, bright,B-1520-015-A1
Quarter Turn Latch B-1520-015-10
Quarter CAM latch, L-handle with padlock, 5mm wing, with CAM, zinc alloy, powder coating, black,B-1520-015-10
Quarter Turn Latch B-1520-1-10
Quarter CAM latch, L-handle with padlock, key locking ,with CAM, zinc alloy, powder coating, black,B-1520-1-10
Quarter Turn Latch B-1520-1-A1
Quarter CAM latch, L-handle with padlock, key locking ,with CAM, stainless steel, polished, bright,B-1520-1-A1
