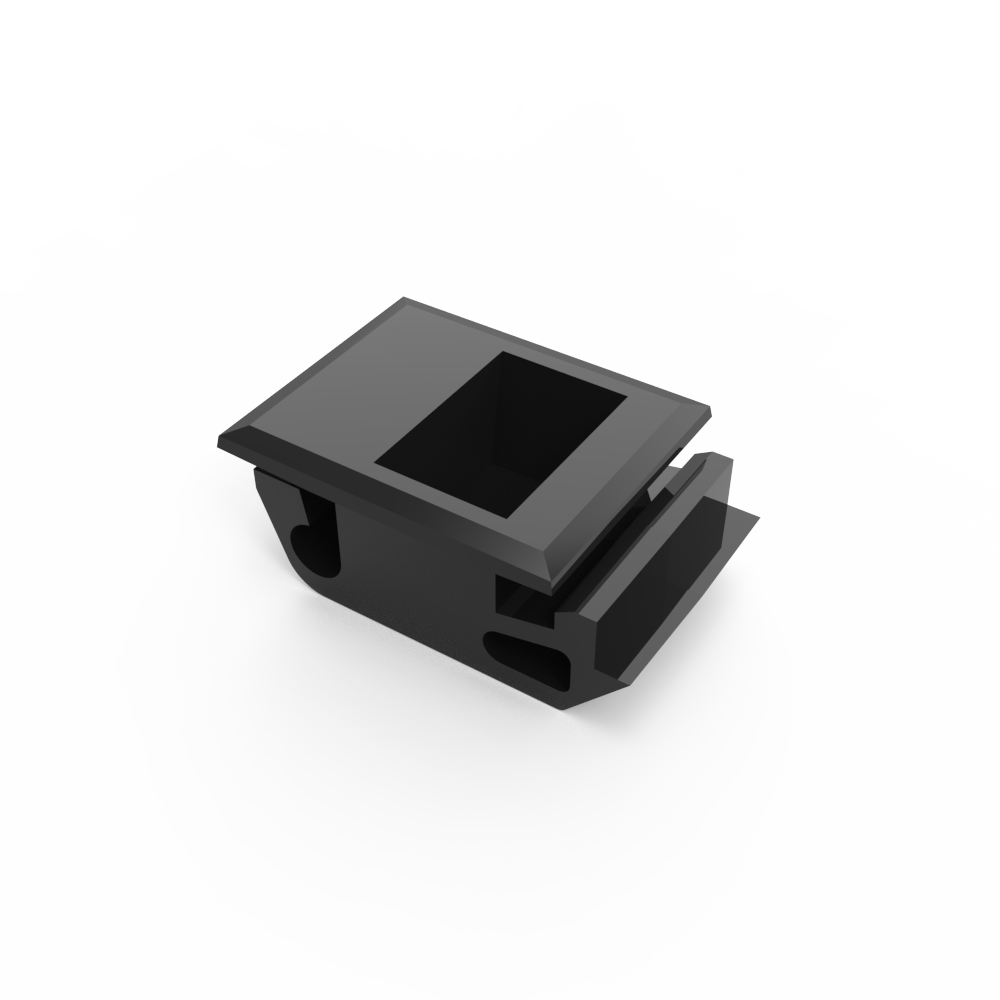

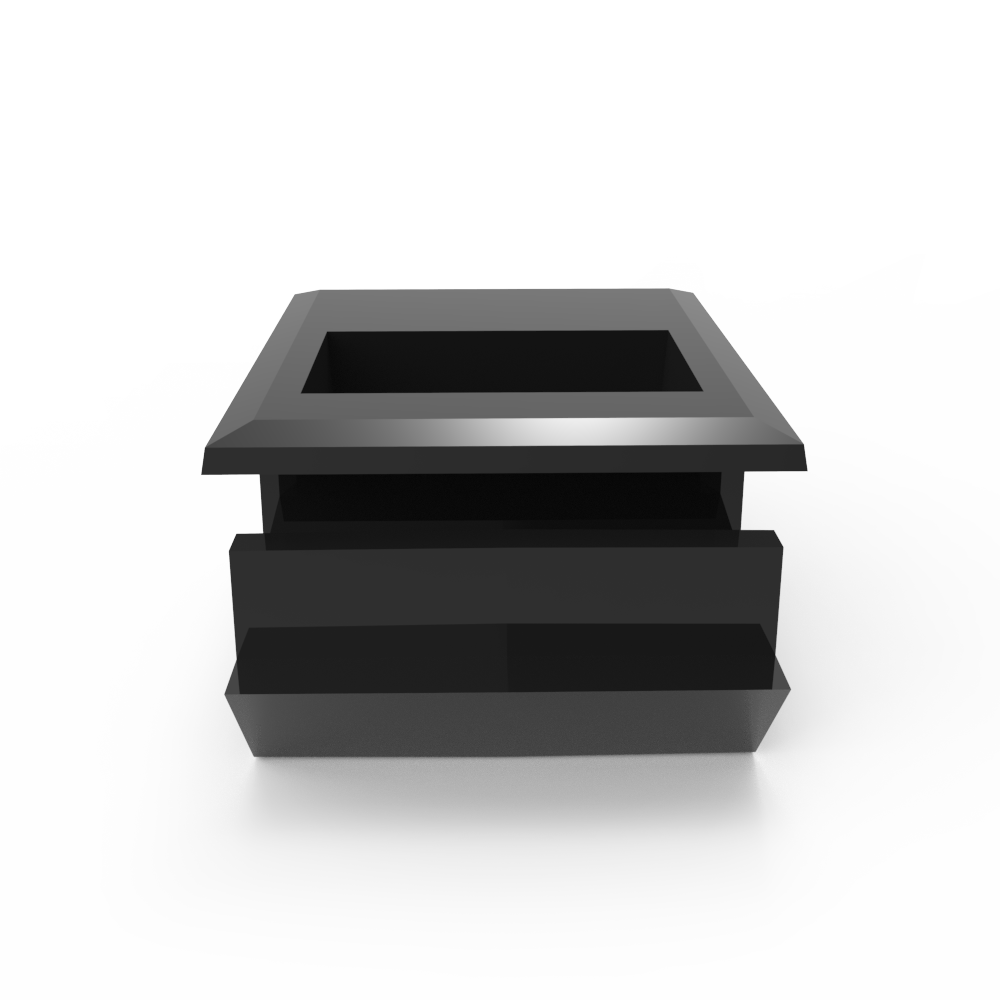

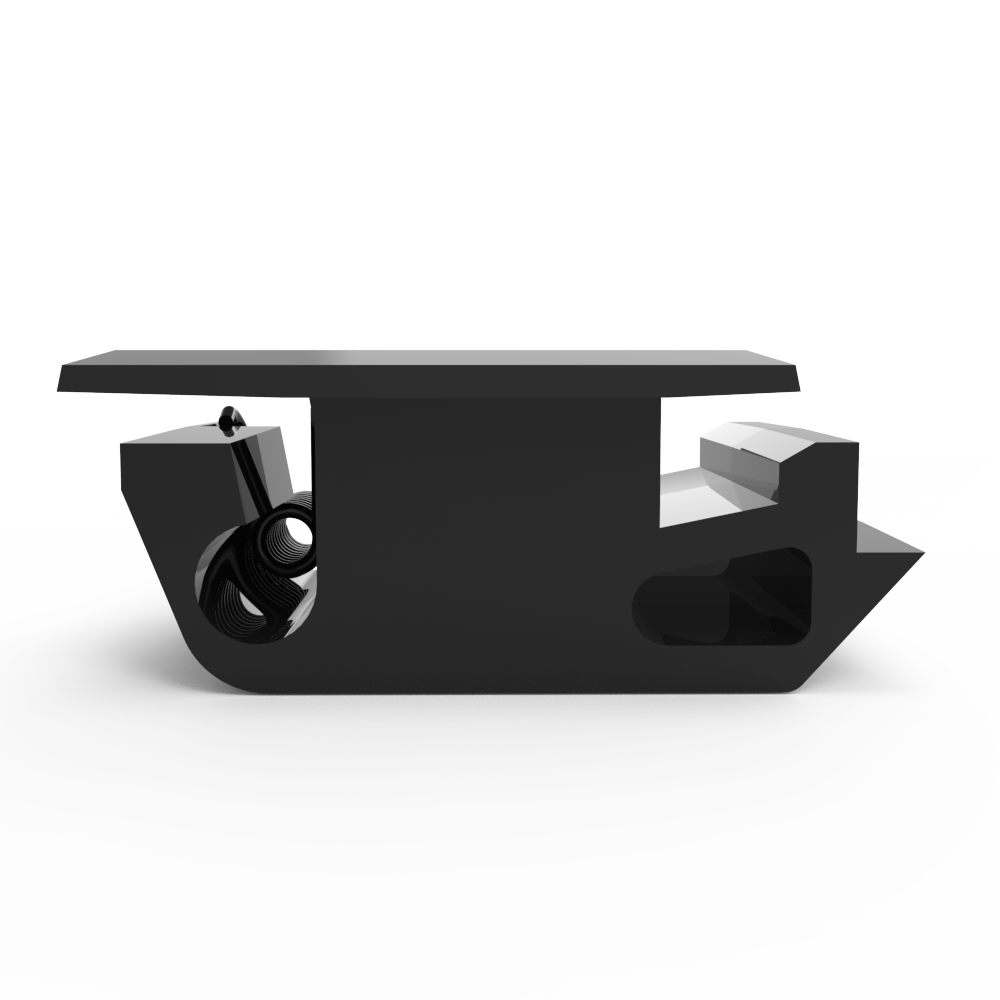

Push-to-Close Slide Latch DK728-1B
Push-to-Close Slide Latch DK728-1B

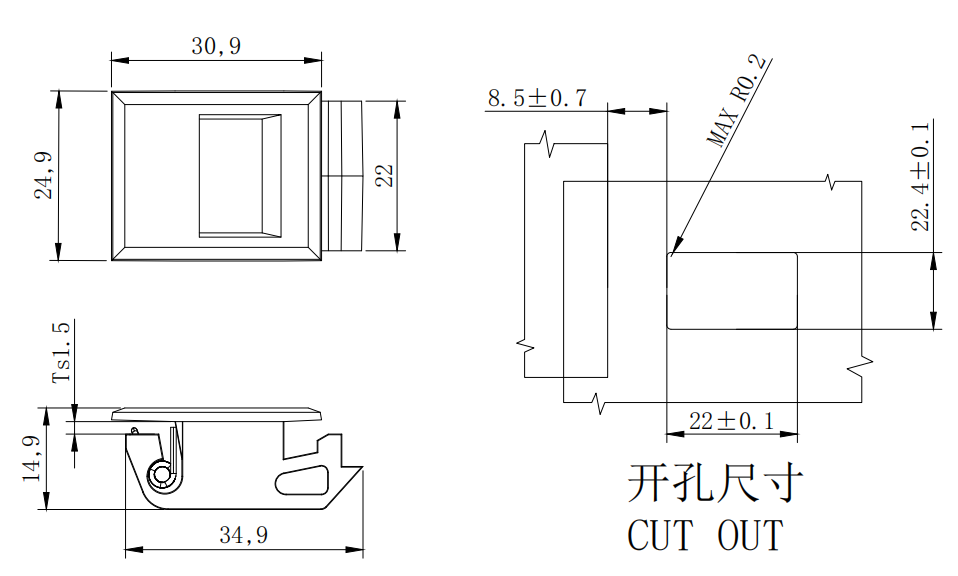

Push-to-Close Slide Latch, Miniature Size, 1.6mm (0.06in) Panel Thickness,ABS,Black DK728-1B

1.Material and surface treatment:

Latch:ABS, blackSpring: Stainless steel
2.Performance Details

90 series 140N(32lbf)

40 series 180 N(40 lbf)

50 and 99 series 220N(50lbf)

Operating temperature range:

-40C(-40F)to60C(140F)

Quarter Turn Latch B-1312-A1
Quarter-turn cam latch, L-handle, cam, padlock, stainless steel, brushed and polished, bright,B-1312-A1
Quarter Turn Latch B-1312-10
Quarter Turn Cam Latch, L-Handle, Cam, Padlock, Black Powder Coat,B-1312-10
Quarter Turn Latch B-1312-20
Quarter CAM latch, L handle, with CAM, Seal, zinc alloy, Chrome plating, bright,B-1312-20
Quarter Turn Latch MS325-10
Quarter Turn Cam Latch, L-Handle, Cam, with Hanging, Zinc Alloy, Powder Coated, Black,MS325-10
Quarter Turn Latch MS325-20
Quarter-turn cam latch, L-handle, cam with hanging, zinc alloy, chrome plating, bright,MS325-20
Quarter Turn Latch B-1520-038-10
Quarter CAM latch, L-handle with padlock, Triangle 8,with CAM, zinc alloy, powder coating, black,B-1520-038-10
Quarter Turn Latch B-1520-015-A1
Quarter CAM latch, L-handle with padlock, 5mm wing ,with CAM, stainless steel, polished, bright,B-1520-015-A1
Quarter Turn Latch B-1520-015-10
Quarter CAM latch, L-handle with padlock, 5mm wing, with CAM, zinc alloy, powder coating, black,B-1520-015-10
Quarter Turn Latch B-1520-1-10
Quarter CAM latch, L-handle with padlock, key locking ,with CAM, zinc alloy, powder coating, black,B-1520-1-10
Quarter Turn Latch B-1520-1-A1
Quarter CAM latch, L-handle with padlock, key locking ,with CAM, stainless steel, polished, bright,B-1520-1-A1
