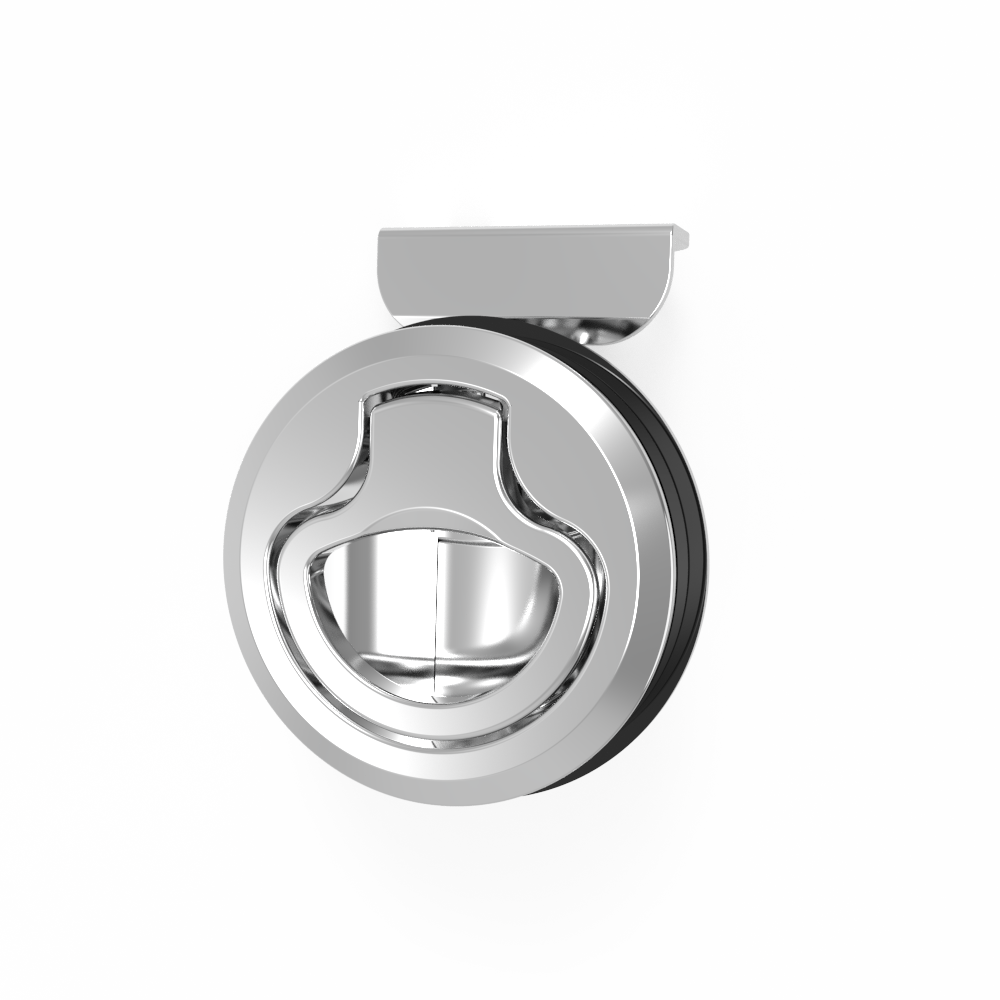

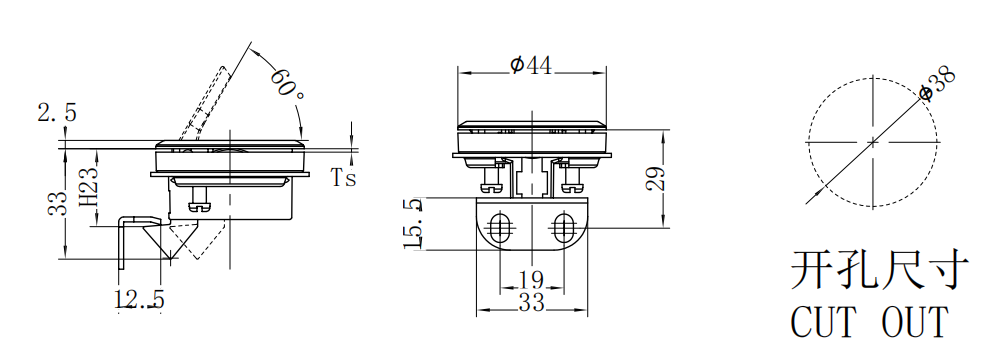

Push-to-Close Latch, Small Size, No Restriction, 1 – 21mm (.04 – .83 in) Door thickness, 23mm (.91 in) Grip, 316 Stainless Steel, Electropolished M1-1101-2-A1

1.Material and surface treatment:

Lock body, handle, dust cover : Zinc Alloy or SUS316 Steel

bolt: iron galvanized or SUS316
2. Performance parameters:

Protection class: IP40

Maximum static load: 545N
3. Remarks:

Default Keyed K180
