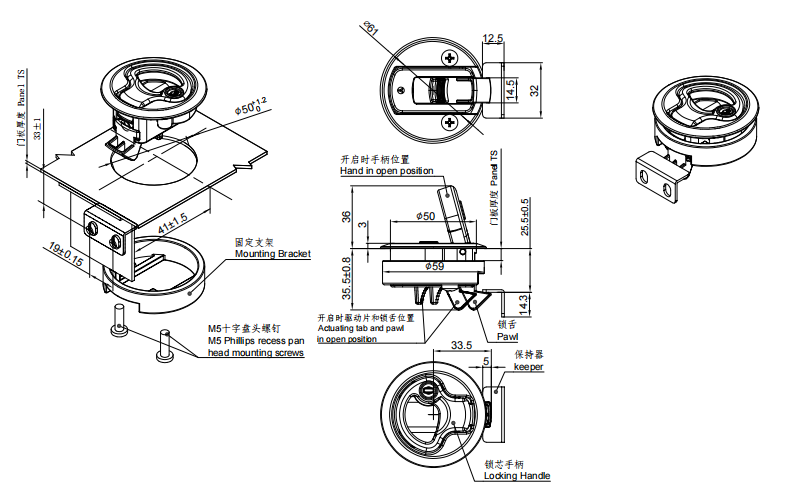

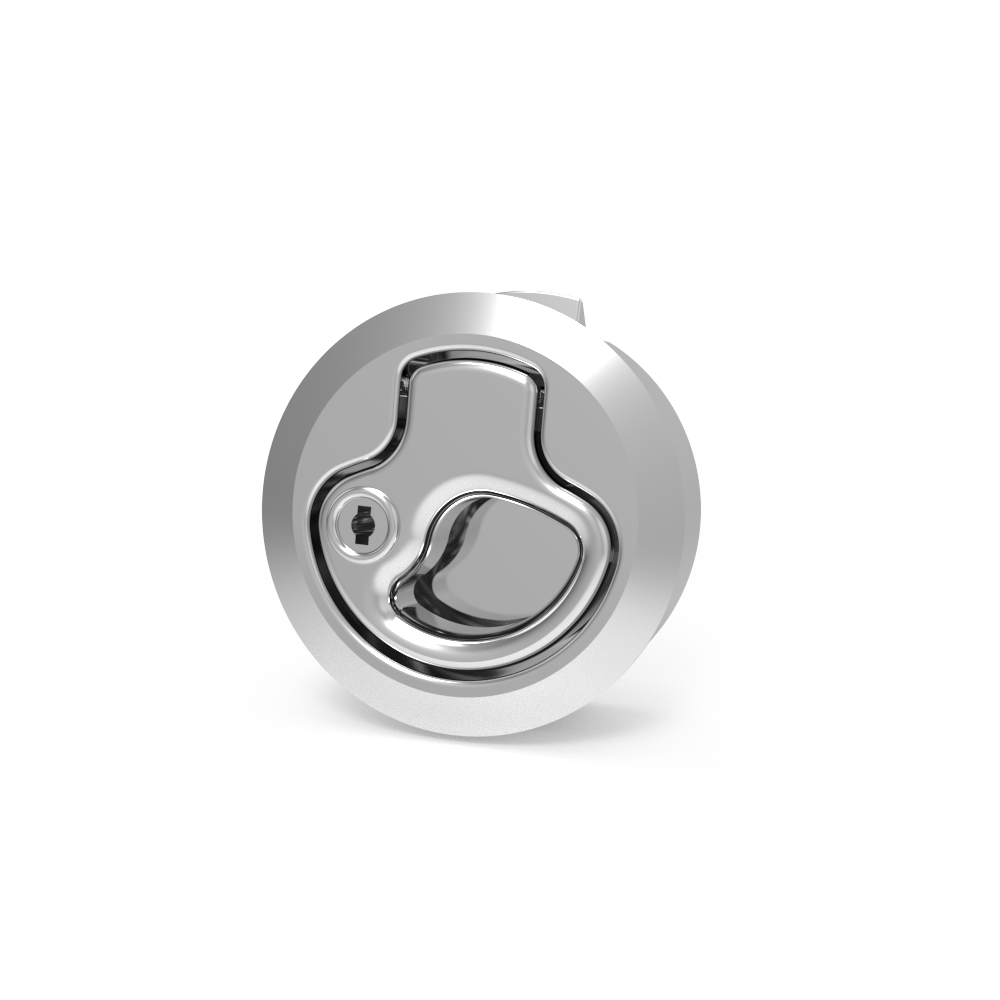

Push-to-Close Latch M1-1102-1-A1
Push-to-Close Latch M1-1102-1-A1

Push-to-Close Latch, Medium Size, key lock, 2 – 7mm (.075 – .275 in) Door thickness, 25.5mm (1.00 in) Grip, stainless steel,polishing,bright M1-1102-1-A1

1.Material and surface treatment:

Lock body, handle :Zinc Alloy or SUS304

2. Performance parameters:

Protection class: IP40

Maximum working load of stainless steel:835N

3. Remarks:

Default Keyed K170

Quarter Turn Latch B-1312-A1
Quarter-turn cam latch, L-handle, cam, padlock, stainless steel, brushed and polished, bright,B-1312-A1
Quarter Turn Latch B-1312-10
Quarter Turn Cam Latch, L-Handle, Cam, Padlock, Black Powder Coat,B-1312-10
Quarter Turn Latch B-1312-20
Quarter CAM latch, L handle, with CAM, Seal, zinc alloy, Chrome plating, bright,B-1312-20
Quarter Turn Latch MS325-10
Quarter Turn Cam Latch, L-Handle, Cam, with Hanging, Zinc Alloy, Powder Coated, Black,MS325-10
Quarter Turn Latch MS325-20
Quarter-turn cam latch, L-handle, cam with hanging, zinc alloy, chrome plating, bright,MS325-20
Quarter Turn Latch B-1520-038-10
Quarter CAM latch, L-handle with padlock, Triangle 8,with CAM, zinc alloy, powder coating, black,B-1520-038-10
Quarter Turn Latch B-1520-015-A1
Quarter CAM latch, L-handle with padlock, 5mm wing ,with CAM, stainless steel, polished, bright,B-1520-015-A1
Quarter Turn Latch B-1520-015-10
Quarter CAM latch, L-handle with padlock, 5mm wing, with CAM, zinc alloy, powder coating, black,B-1520-015-10
Quarter Turn Latch B-1520-1-10
Quarter CAM latch, L-handle with padlock, key locking ,with CAM, zinc alloy, powder coating, black,B-1520-1-10
Quarter Turn Latch B-1520-1-A1
Quarter CAM latch, L-handle with padlock, key locking ,with CAM, stainless steel, polished, bright,B-1520-1-A1
