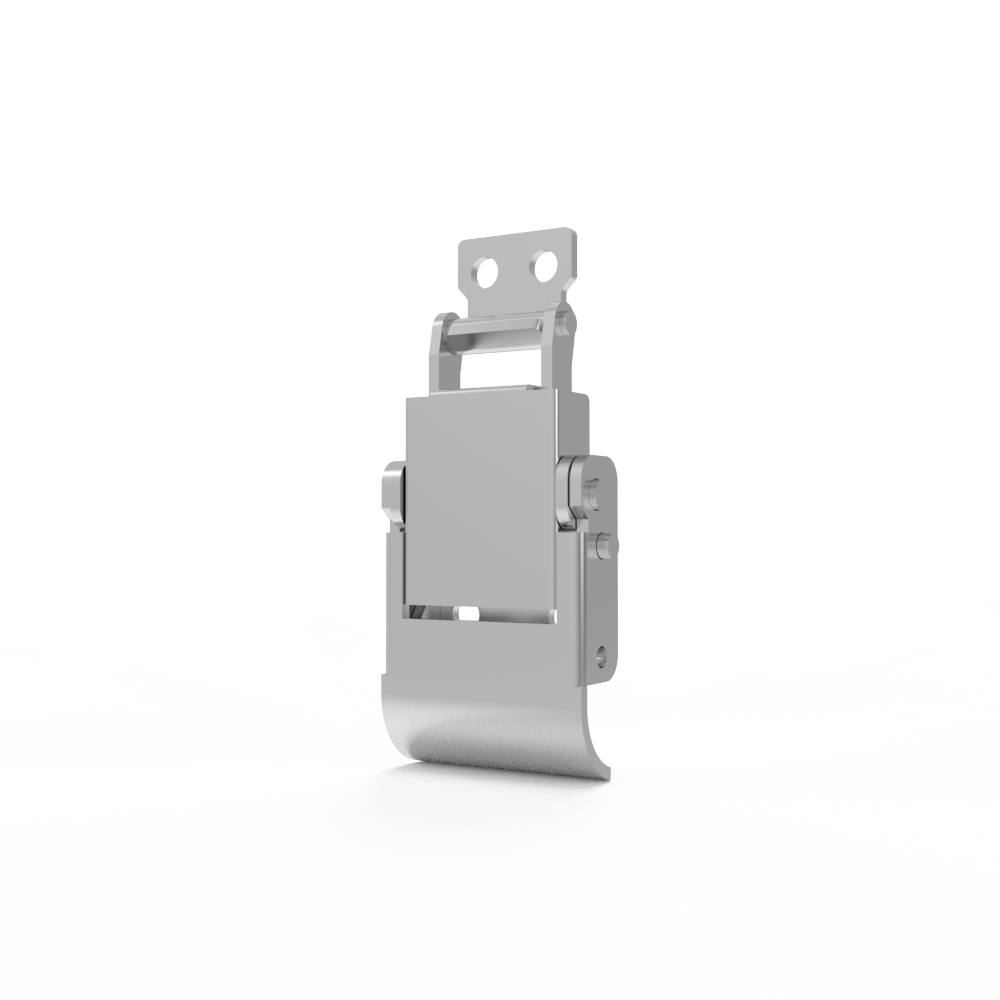

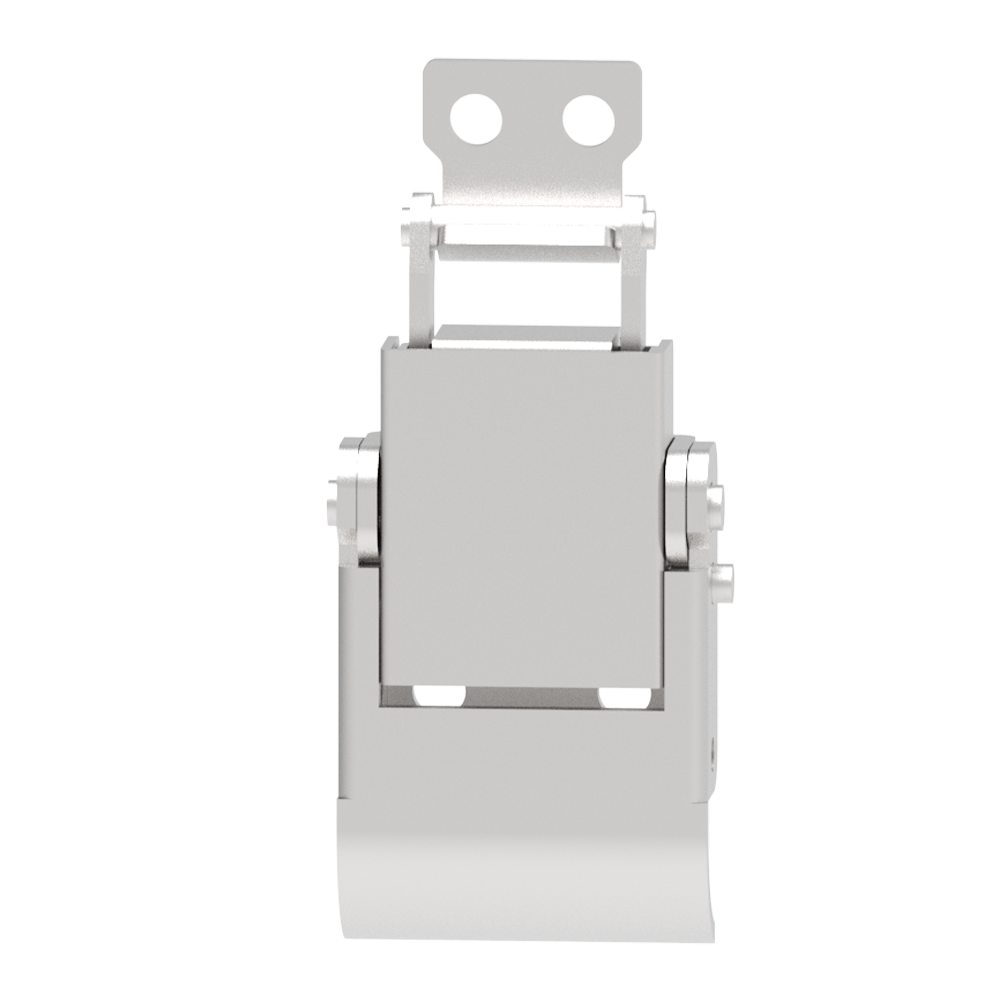

Over-center draw latch, exposed mounting, stainless steel, passivated, bright,DK774

1. Detailed Materials, Engineering Grade & Environmental Durability

The DK774 Stainless Steel Over-Center Draw Latch is engineered for heavy-duty industrial enclosures, transport cases, and machinery access panels that require high mechanical pull-up tension, vibration-proof latching, and exceptional atmospheric resistance.

• High-Grade Stainless Steel Metallurgy: Manufactured using precision-stamped and forged 304 (1.4301) or optional 316 (1.4401) stainless steel. This structural composition ensures exceptional tensile strength, heavy load-bearing capability, and resistance to mechanical deformation under continuous latching tension.

• Chemical Passivation & Surface Integrity: Features a passivated bright finish that enhances the metal’s natural passive chromium oxide layer. This passivation treatment eliminates free iron contaminants from the surface, providing superior protection against rust, industrial fumes, chemical splashes, and atmospheric moisture. It easily survives 240-hour to 500-hour neutral salt spray tests (ASTM B117 / ISO 9227) without pit formation, making it highly reliable for marine, coastal, and outdoor applications.

• Over-Center Toggle Mechanism & Gasket Sealing (IP Rating Matching): Utilizing a classic over-center mechanical linkage (toggle action), the latch pulls the keeper tightly against the door frame as it locks past its mechanical center. When paired with continuous EPDM or silicone gaskets, it maintains uniform sealing tension, helping enclosures achieve IP65 / IP66 ingress protection ratings (EN 60529 / NEMA 4X) against dust, washdown spray, and driving rain.

• Anti-Vibration & Over-Center Security: The mechanical advantage of the over-center leverage prevents accidental disengagement caused by heavy harmonic vibrations from operating machinery, industrial compressors, or transport vehicle motion.

2. Technical Specifications & Parameter Matrix

The parameter table below is structured for fast engineering procurement evaluations and structured snippet indexing by search engines:

3. High-Frequency Industrial Application Scenarios

The DK774 over-center draw latch is widely deployed across critical equipment housings requiring high tension pull-up and reliable surface-mount latching:

• Electrical & Control Enclosures: Secures outdoor power distribution kiosks, industrial switchgear cabinets, and motor control centers with tight gasket compression.

• Outdoor 5G Telecom & Broadband Cabinets: Maintains weatherproof sealing on remote telecommunication node housings, fiber optic splice boxes, and battery backup bays.

• Industrial CNC Machinery & Equipment Housings: Provides quick-access, vibration-proof latching for metalworking machine guards, air compressor hoods, and generator enclosures.

• HVAC Systems & Air Handling Units (AHU): Delivers continuous pull-up force on pressurized air handling doors, industrial chiller panels, and duct access covers to stop air leakage.

• Transport Cases & Marine Containers: Serves as a heavy-duty tension latch for flight cases, military transit containers, food processing equipment, and marine access hatches subject to harsh washdown routines.

4. Why Choose CUYUE for Your Industrial Hardware Needs?

At Wenzhou CUYUE Lock Technology Co., Ltd., we combine extensive manufacturing experience with full internal R&D and production capabilities to support global OEMs, cabinet builders, and hardware distributors:

• In-House R&D & Engineering Design: Supported by a dedicated design team, we develop advanced cabinet locks, hinges, and draw latches engineered to strictly match global industrial specifications.

• Integrated Manufacturing Capabilities: Our facility integrates precision progressive stamping, mold development, automated CNC machining, chemical passivation, and quality testing under one roof for complete quality management.

• Rigorous Quality Validation: Every batch undergoes mechanical load testing, salt spray corrosion testing, and locking action verification before dispatch.

• Flexible OEM/ODM Customization & Rapid Delivery: We offer custom hole layouts, spring-loaded safety catches, padlockable loops, custom dimensions, and rapid prototyping to keep your production schedules on track.

• Cost-Effective Hardware System Solutions: We empower clients to optimize total procurement costs without sacrificing product longevity, delivering total enclosure locking hardware systems under one trusted brand.
