Flush Handle LS102
1.Material and surface treatment: ABS plastic, black
2.Performance details: Lift/pull out 1300N
Flame retardant grade: UL94-HB or UL94-V0
Operating temperature range: -50° C to 60° C
Note:The detailed performance information comes from the steel door installed in the thickness of 1.2mm or more. The maximum load is limited by the strength of the door panel.

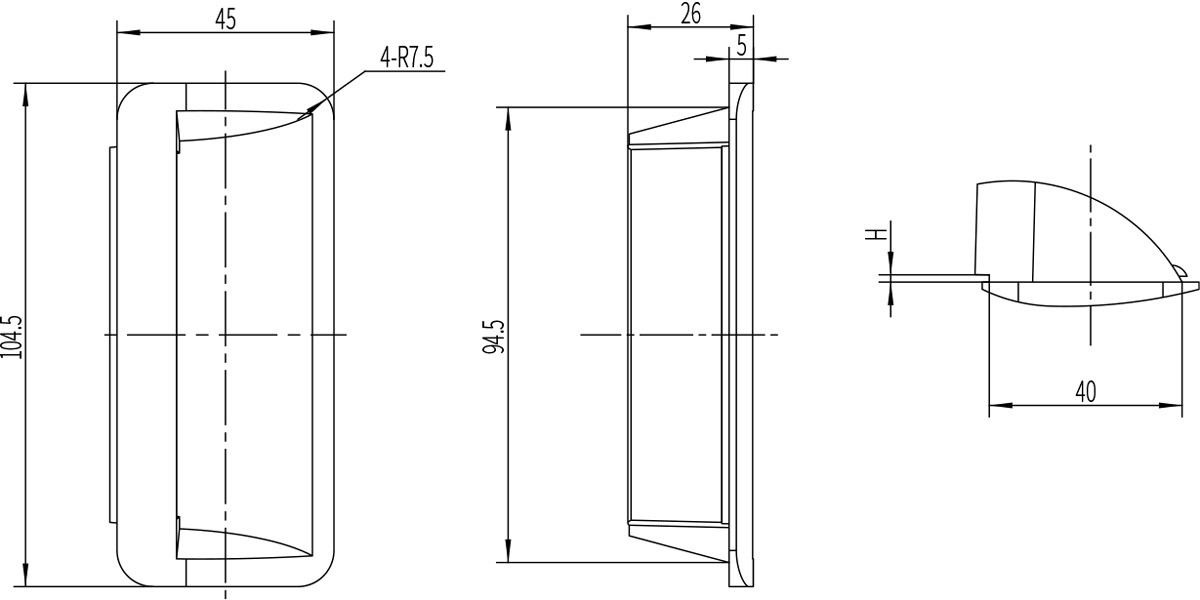

| Serial number | Door panel thickness (H) |
| 1 | 1.2±0.2 |
| 2 | 1.5±0.2 |
| 3 | 2±0.2 |
| 4 | 5±0.2 |
| 5 | Customizable |
