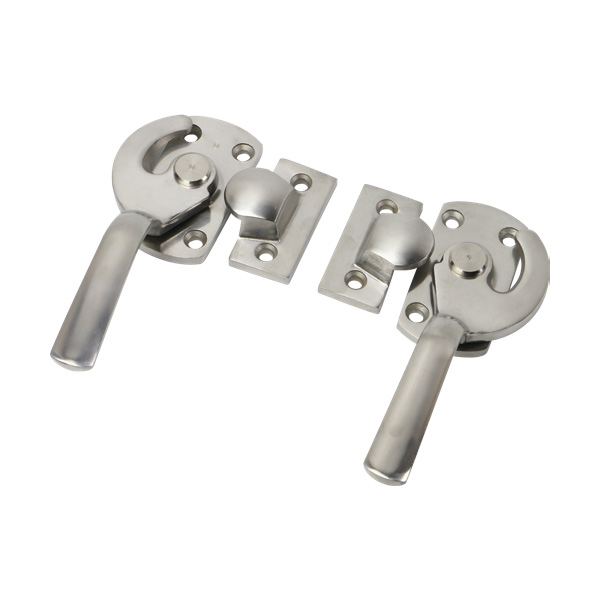

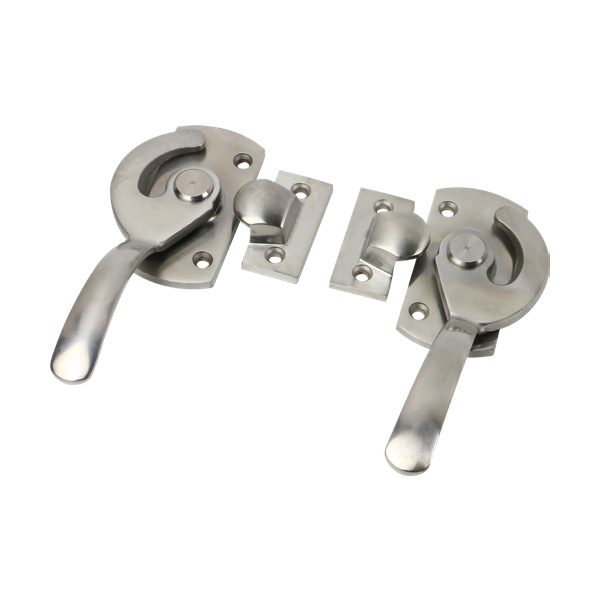

Draw Latches DK612
1. Material: 304 stainless steel
2. Surface treatment: Brushing, Mirror polishing

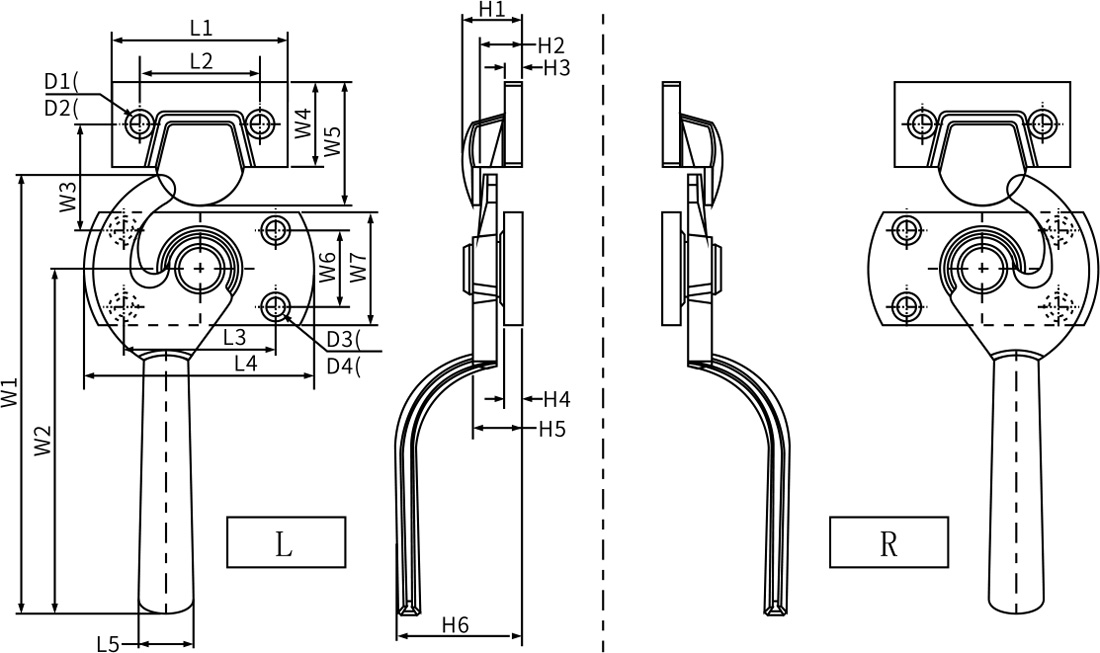

| Model | L1 | L2 | L3 | L4 | L5 | W1 | W2 | W3 | W4 | W5 | W6 | W7 | H1 | H2 | H3 | H4 | H5 | H6 | D1 | D2 | D3 | D4 | Weight(g) | Surface |
| DK612-1L | 50 | 34 | 52 | 80 | 17 | 140 | 109 | 34 | 24 | 35 | 25 | 40 | 17 | 12 | 5 | 5 | 14 | 43 | φ5.2 | φ8.5 | φ5.2 | φ8.5 | 233g | Polishing |
| DK612-1R | 50 | 34 | 52 | 80 | 17 | 140 | 109 | 34 | 24 | 35 | 25 | 40 | 17 | 12 | 5 | 5 | 14 | 43 | φ5.2 | φ8.5 | φ5.2 | φ8.5 | 233g | Polishing |
| DK612-2L | 50 | 34 | 43 | 65 | 15.5 | 125 | 98 | 30 | 24 | 35 | 22 | 32 | 17 | 12 | 5 | 5 | 14 | 36 | φ5.2 | φ8.5 | φ5.2 | φ8.5 | 198g | Polishing |
| DK612-2R | 50 | 34 | 43 | 65 | 15.5 | 125 | 98 | 30 | 24 | 35 | 22 | 32 | 17 | 12 | 5 | 5 | 14 | 36 | φ5.2 | φ8.5 | φ5.2 | φ8.5 | 198g | Polishing |
| DK612-3L | 45 | 32 | 37 | 55 | 10.5 | 90 | 68 | 28 | 20 | 30 | 17 | 30 | 14.5 | 10 | 5 | 5 | 12.5 | 28 | φ4.3 | φ8 | φ4.3 | φ8 | 124g | Polishing |
| DK612-3R | 45 | 32 | 37 | 55 | 10.5 | 90 | 68 | 28 | 20 | 30 | 17 | 30 | 14.5 | 10 | 5 | 5 | 12.5 | 28 | φ4.3 | φ8 | φ4.3 | φ8 | 124g | Polishing |
