Quarter Turn Latch MS705
1.Material:
zinc alloy
2.Surface treatment:
Bright chrome
3.Function and use:
By rotated 90 degrees to open the key, lock and switch locking plate can be achieved through open left or right.variety locking plate for reference
4.Installation instructions:
Fixing screw torque 8N.M, fixing nut torque 17N.M, applicable door thickness 1-8mm.
| Lock type | Lock code | Lock body GH=18mm | |
| 304 SUS | 316 SUS | ||
| Double bit 3mm | 013 | D1-1401-013-A1 | D1-1401-013-A2 |
| Double bit 4mm | 014 | D1-1401-014-A1 | D1-1401-014-A2 |
| Triangle 7mm | 037 | D1-1401-037-A1 | D1-1401-037-A2 |
| Triangle 8mm | 038 | D1-1401-038-A1 | D1-1401-038-A2 |
| Square 7mm | 047 | D1-1401-047-A1 | D1-1401-047-A2 |
| Square 8mm | 048 | D1-1401-048-A1 | D1-1401-048-A2 |
| Straight groove | 024 | D1-1401-024-A1 | D1-1401-024-A2 |
| Hex socket 8mm | 168 | D1-1401-168-A1 | D1-1401-168-A2 |
| S-type lock core | S | D1-1401-S-A1 | D1-1401-S-A2 |
| Arrow core | 011 | D1-1401-011-A1 | D1-1401-011-A2 |
| Lock type | Lock code | Lock body GH=18mm | |
| Zinc alloy chrome plating | Plastic spray black | ||

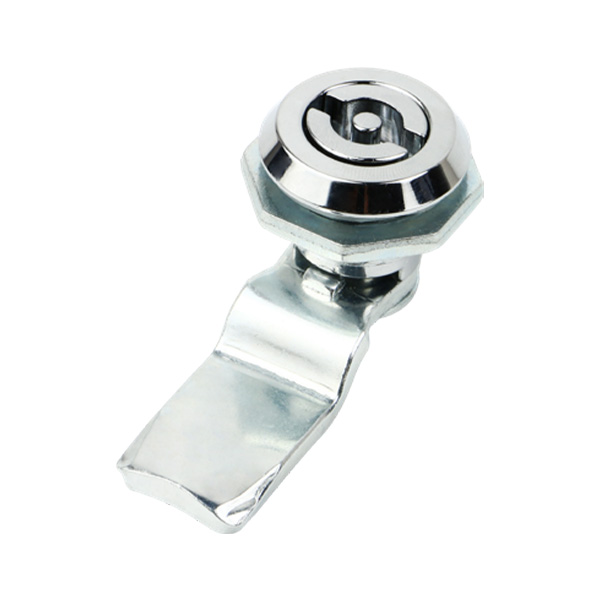

| Double bit 4mm | 014 | MS705 Double bit | / |

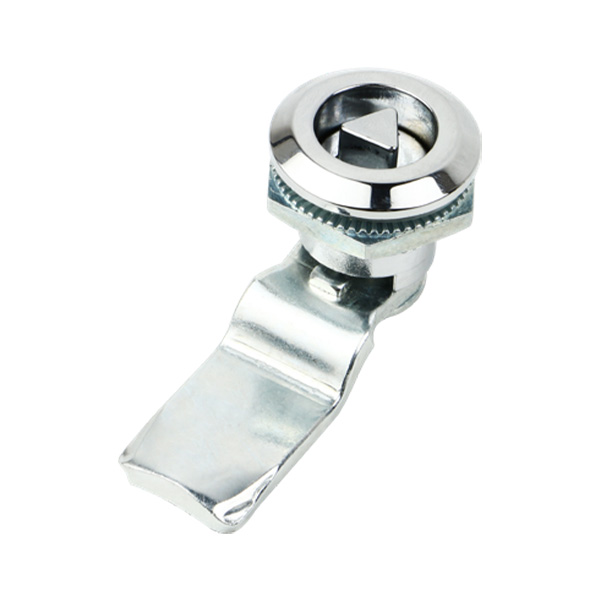

| Triangle 7mm | 037 | MS705 Triangle | / |

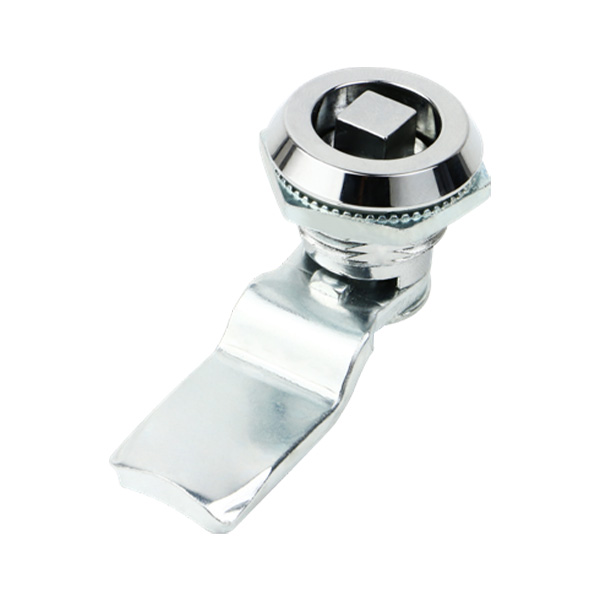

| Square 7mm | 047 | MS705 Square | / |

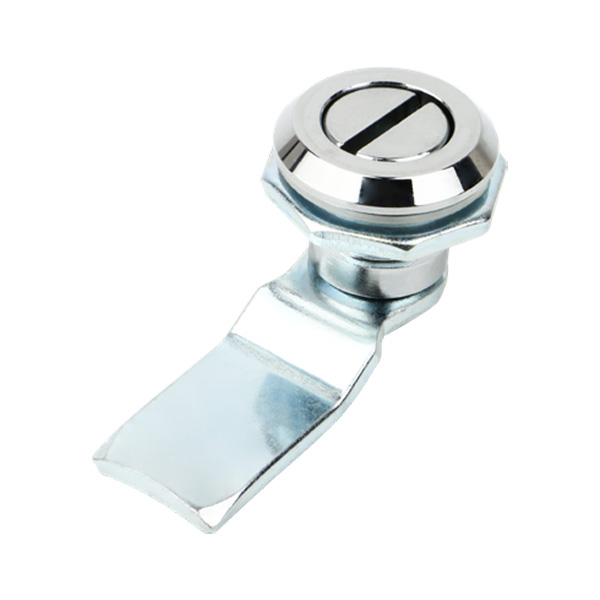

| Straight groove | 024 | MS705 Straight slot | / |

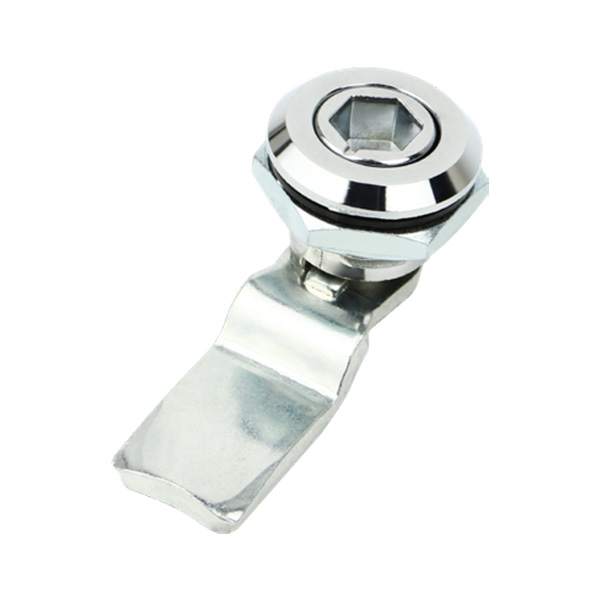

| Hex socket 10mm | 168 | MS705 Hex socket | MS705 Hex socket |
