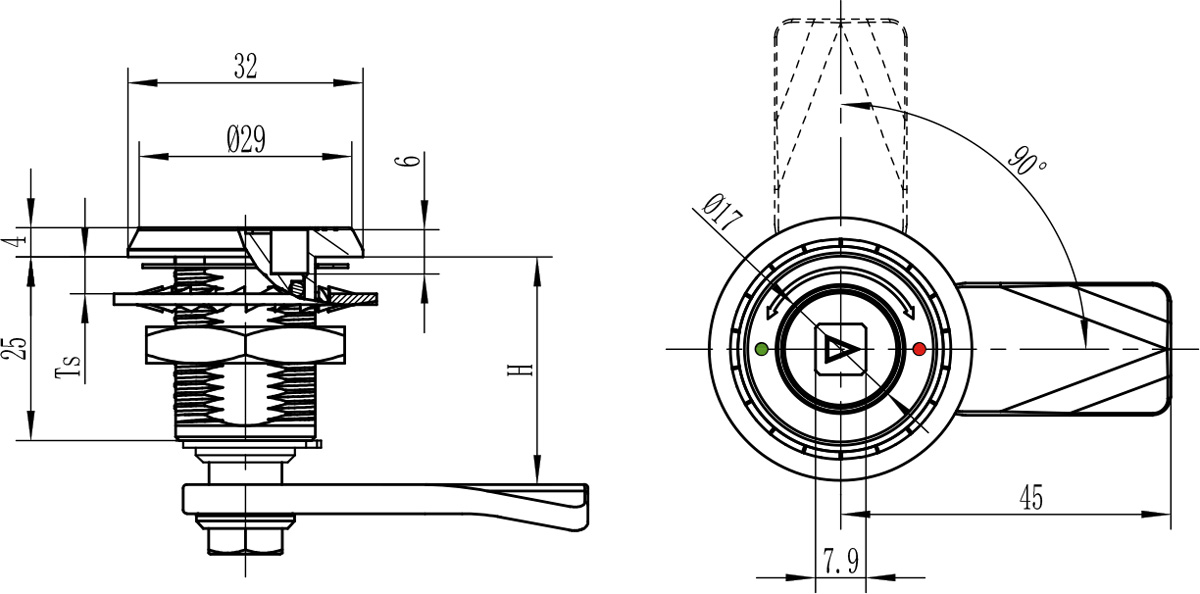

Compression Latches C2-1555
1. Material and surface treatment：Stainless steel 316 or 304
2. Performance parameters:
- Unlocking torque: less than or equal to 0.79 N/M
- Ultimate load: 700N
- Tension and expansion: 7mm
- Protection grade: IP65
3. Installation instructions:
- Torque of fixing screw is 8N.M
- Torque of fixing nut is 17N.M
- Applicable thickness of door panel: 1-15mm
| Lock type | Lock code | Left open | Right open |
| Square 8mm | 348 | C2-1555-348L | C2-1555-348R |
| Triangle 8mm | 238 | C2-1555-238L | C2-1555-238R |
