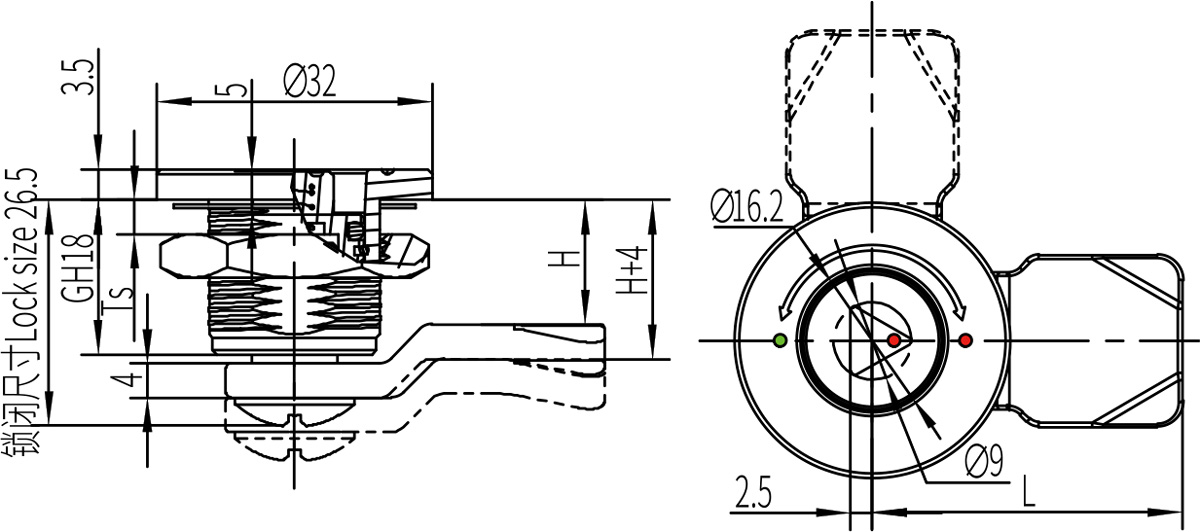

Compression Latches C2-1510
1. Material and surface treatment：Stainless steel 316 or 304
2. Performance parameters:
- Unlocking torque: less than or equal to 0.79 N/M
- Ultimate load: 700N
- Tension and expansion: 4mm
- Protection grade: IP65
3. installation instructions:
- Torque of fixing screw is 8N.M
- Torque of fixing nut is 17N.M
- Applicable thickness of door panel: 1-5mm
| Lock type | Left | Right | ||
| Wire-drawing | Sandblast | Wire-drawing | Sandblast | |
| Triangle 7mm | C2-1510L-237-S3 | C2-1510L-237-S4 | C2-1510R-237-S3 | C2-1510R-237-S4 |
| Square 7mm | C2-1510L-247-S3 | C2-1510L-247-S4 | C2-1510R-247-S3 | C2-1510R-247-S4 |
